1988-91 Honda Hawk GT partsfiche

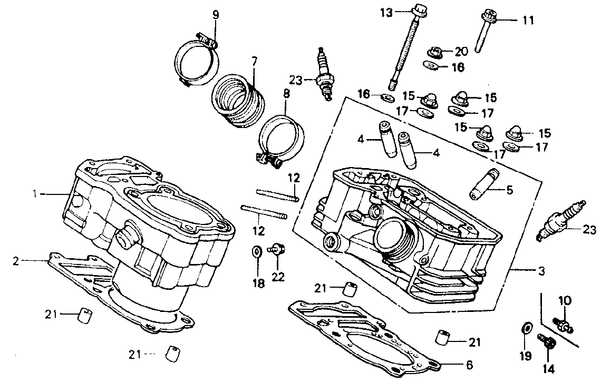

cylinder rear

no.descriptionpart numbertypical price
1 CYLINDER COMP., RR.   12110-MN8-010 $279.38
2 GASKET, CYLINDER   12191-MN8-003 $8.63
3 CYLINDER HEAD, RR.   12220-MN8-750 $414.80
4 GUIDE, IN. VALVE   12231-MF5-305 $11.49
5 GUIDE, EX. VALVE   12241-MF5-315 $9.58
6 GASKET, CYL HD   12251-MN8-911 $19.89
7 INSULATOR   16211-MN8-750 $9.46
8 BAND A, INSULATOR   16218-MN8-750 $4.80
9 BAND B, INSULATOR   16219-MN8-750 $5.83
10 JOINT, PB   16221-MA6-000 $6.60
11 BOLT, SOCKET (6X70)   90012-KN8-730 $2.55
12 BOLT, STUD (8X22)   90015-MN8-000 $2.02
13 BOLT (8X187)   90081-MM9-003 $5.31
14 BOLT, SOCKET (5X8)   90089-MN8-000 $2.02
15 NUT (10MM)   90202-329-000 $1.86
16 WASHER (8MM)   90401-MR1-000 $1.22
17 WASHER (10MM)   90410-HC4-000 $2.20
18 WASHER (6MM)   90441-706-000 $0.78
19 WASHER (5MM)   90452-323-000 $0.75
20 NUT, FLANGE (8MM)   94050-08080 $0.09
21 PIN, DOWEL (14X20)   94301-14200 $1.00
22 BOLT, FLANGE (6X10)   95701-06010-00 $0.57
23 S/PLG (DPR7EA-9)   98069-57916 $1.88
