1988-91 Honda Hawk GT partsfiche

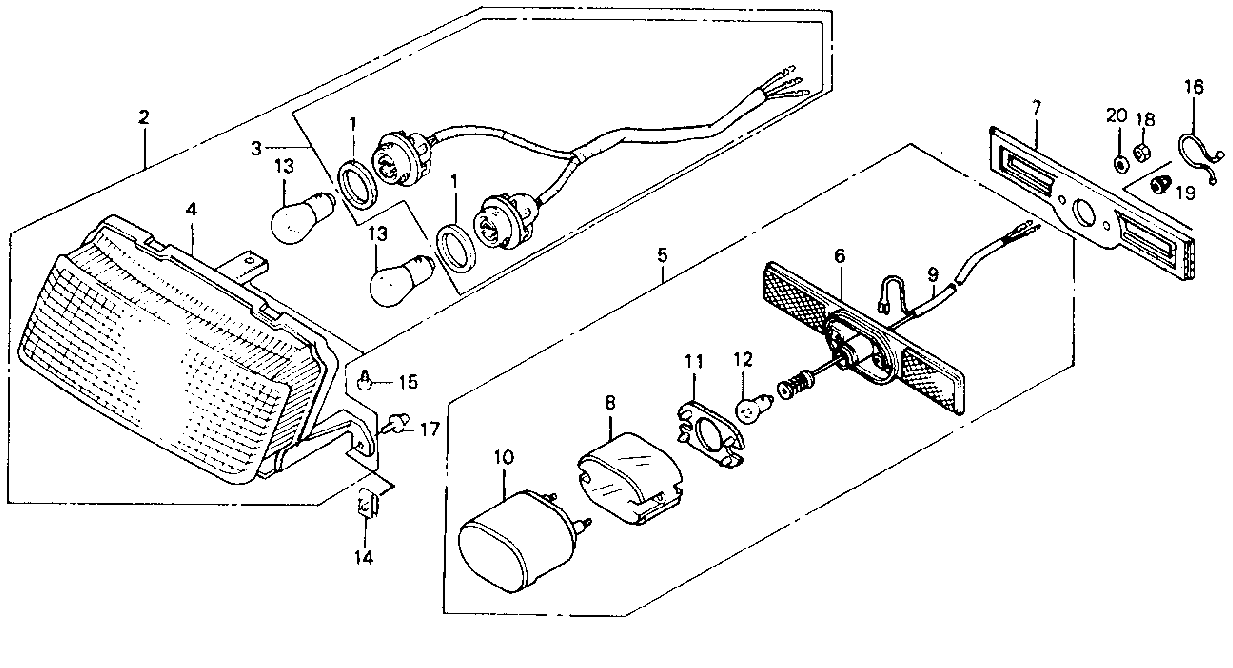

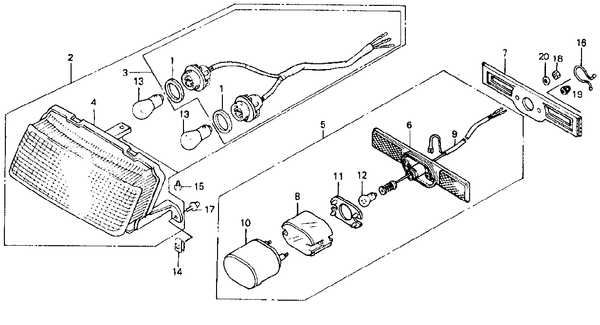

taillight

no.descriptionpart numbertypical price
1 GASKET, SEAL   33518-SA2-003 $1.77
2 TAILLIGHT UNIT   33701-MN8-672 $108.34
3 SOCKET COMP.   33705-MN8-003 $18.78
4 TAILLIGHT UNIT   33706-MN8-671 $75.14
5 LIGHT ASSY., LICENSE   33720-MN8-671 $71.00
6 BASE COMP.   33721-ME4-671 $42.08
7 GASKET   33721-ME9-000 $8.02
8 LENS, LICENSE   33722-MB1-013 $11.02
9 WIRE COMP., LICENSE   33725-MN8-670 $7.34
10 COVER COMP., LICENSE   33727-MN8-671 $12.78
11 GASKET, LENS   33729-MB1-003 $3.35
12 BULB (12V 8W)   34616-568-671 $0.67
13 BULB (12V 27/8W)   34906-425-771 $2.60
14 NUT, CLIP (4MM)   64527-KE8-000 $2.80
15 SCREW, TAP (4X12)   90101-SA4-000 $0.34
16 BAND, TUBE   90683-GS9-670 $1.71
17 SCREW-WASHER (4X12)   93893-04012-07 $0.52
18 NUT, HEX. (4MM)   94001-04000-0S $0.35
19 NUT, CAP (4MM)   94021-04020-0S $0.43
20 WASHER, PLAIN (4MM)   94103-04000 $0.26
